PRODUCT INFO

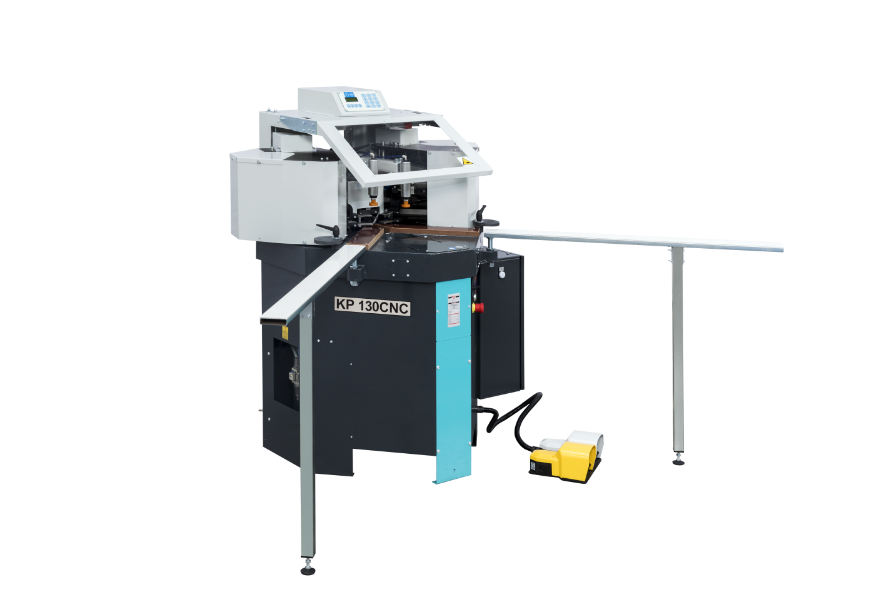

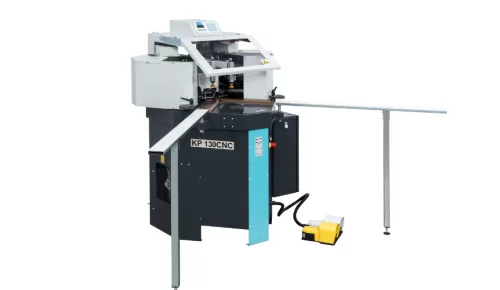

KP 130 CNC machine is designed and constructed for the crimping and correct assembly of aluminum profiles to each other. It is a fully CNC-controlled machine. The machine is controlled by an electronic system that can memorize the pressing data for any profile (the points at which the profile will be crimped)

STANDART ACCESORIES

  • 1 set of 3 mm, 1 set of 5 mm and 1 set of 7 mm crimping knives
  • 2x pneumatic vertical clamps
  • 2x profil support arms
  • 2x allen key (4 and 5 mm)

OPTIONAL ACCESSORIES

  • Special crimping knives

GENERAL FEATURES

  • It is designed through the CNC crimping system
  • Cast iron construction of the body that is strong and lasting
  • Magnetic tool gripping system that is adjustable according to the shape and height of the profiles
  • The control system needs this information for the automatic positioning of the reference fork of the profile and of the crimping tools
  • Special millimeter of scale that allows reading of the positioning value of the knives
  • Simultaneous stroke of crimping heads
  • Double-acting stroke of bracing clamp appears from the table
  • Support arms on the left and right of the machine
  • The machine is equipped with foot pedals for operation control during the machining cycle
  • Hydraulically working 90° of the bracing clamp for the inner corner
  • Operator safety guard
  • Operating stroke of knives: 10.5 mm
  • Bracing clamp stroke: 80 mm
  • Adjustable stroke of knives: from 30 mm to 60 mm

TECHNICAL SPECIFICATIONS TABLE

150 W 2 A 220-230V 50 Hz
Hmax: 120 mm
Wmax 150 mm
25 Lt/min
7-10 Bar
160x234x160
580 / 630
