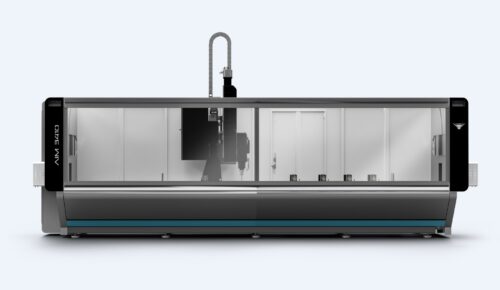

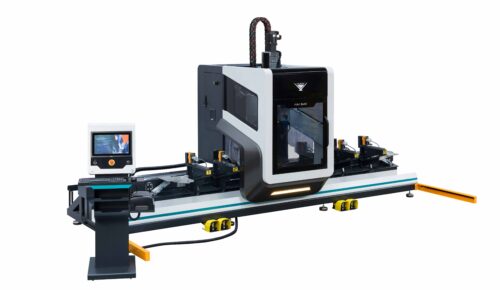

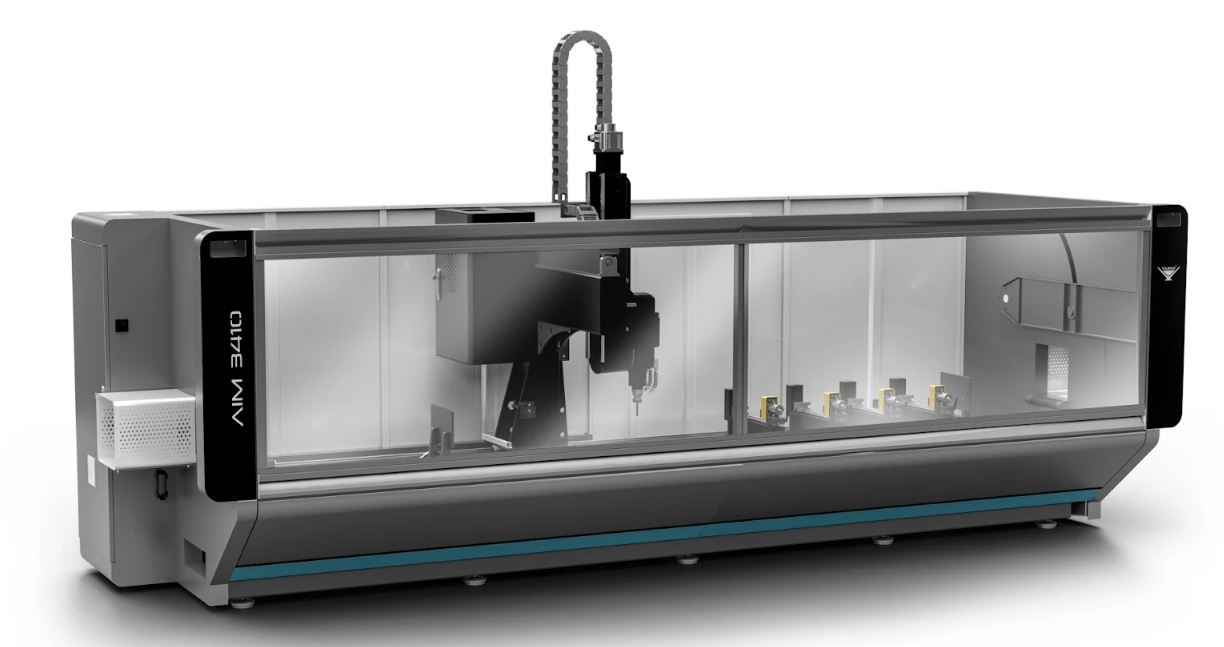

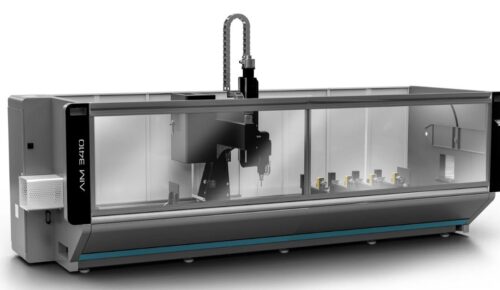

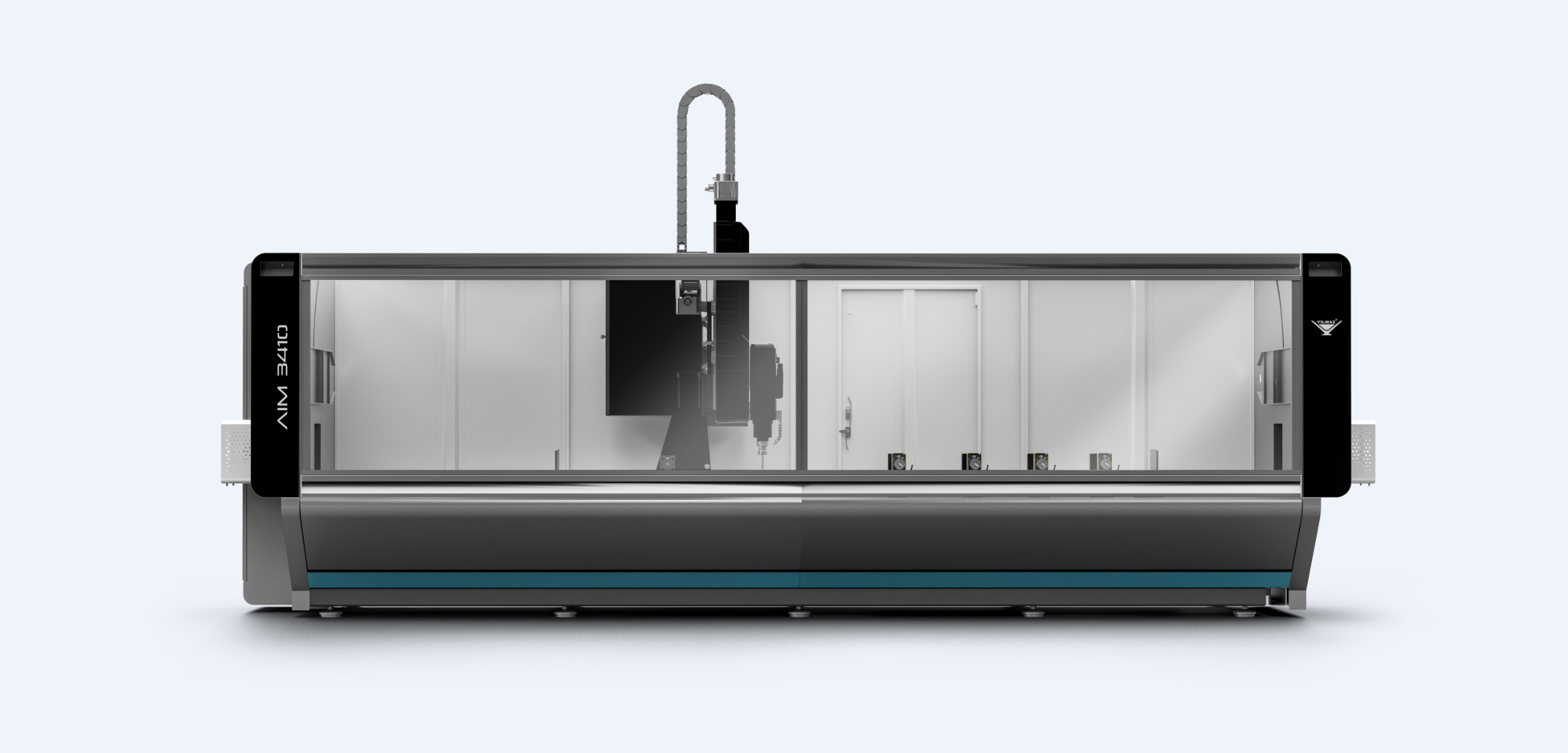

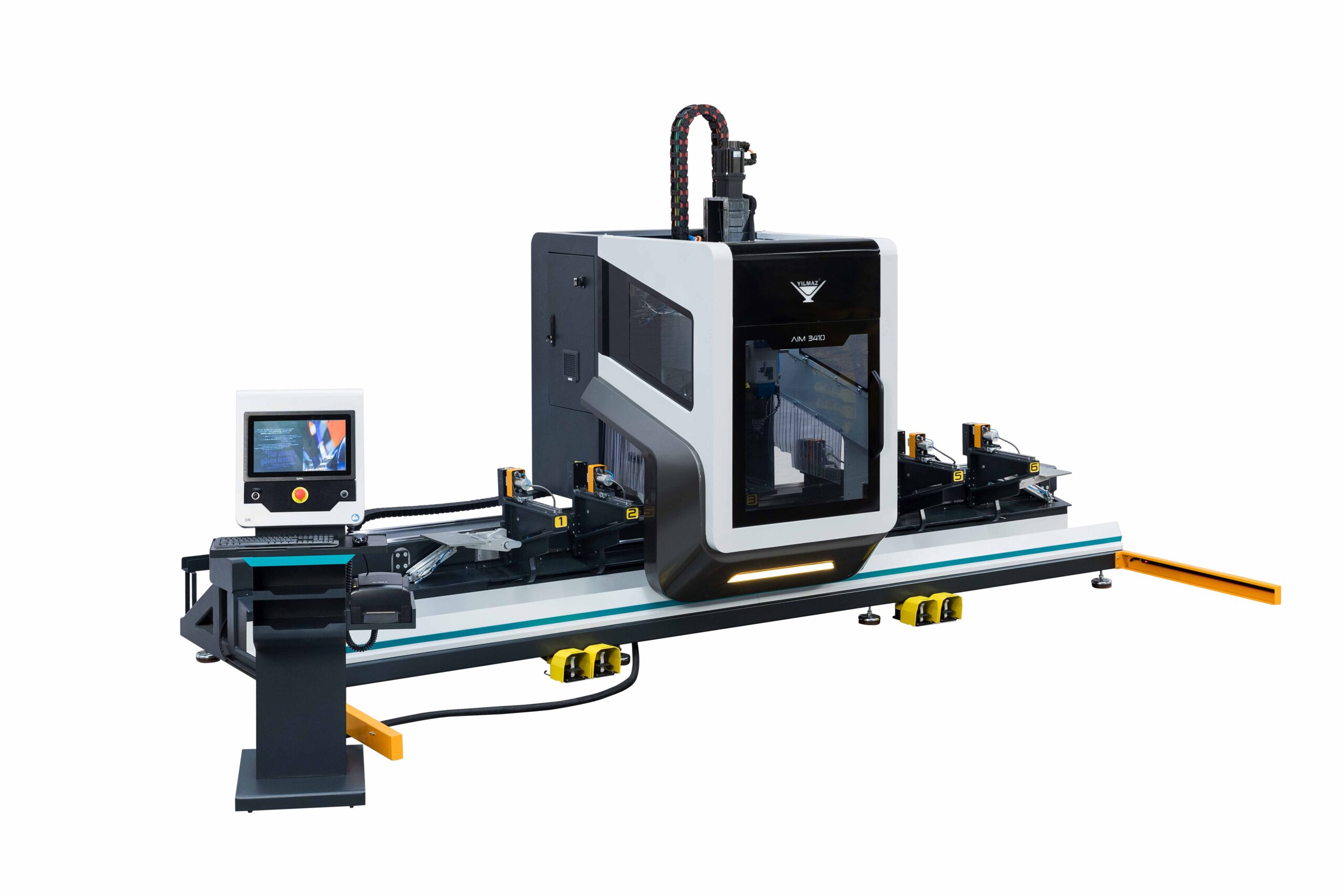

AIM 3410 is CNC controlled 4-axis machine designed specifically for machining all types of aluminium & PVC profiles available on the market. With the 4th. axis feature, it can perform the machining operations on 3 surfaces of profiles. Quick tool changing is provided by the movable and in-line type magazine unite with 8 pcs of tool capacity. The tool magazine is mounted on the movable machining head in order to minimize the tool change time. The machine provides a flexible processing opportunity especially in facade applications with its 180 mm diameter saw. The machine has automatic clamp recognition and positioning feature. The movable cabin of the machine is equipped with a door having a transparent polycarbonate window to facilitate the monitoring of the workpiece processing by the operator. Thus, the safe operation of the operator is ensured.

STANDART ACCESORIES

  • AIMCAM software program for CNC programming
  • Keyboard & mouse set for programming
  • Safety fence around the machine
  • 4 x profile clamps
  • 1 x pneumatic rest on the left side
  • Chip pan in the machine frame
  • AIMCAM software program for CNC programming

OPTIONAL ACCESSORIES

  • Cutter tools, tool holders, collets and apparatus set
  • Second reference profile rest on the right side of the machine
  • Automatic tool length measurement device
  • Special saw blade kit
  • Hand-held controller

GENERAL FEATURES

  • Automation system providing CNC motion at 4-axis
  • Tool magazine unite with the capacity of 7 pcs. of cutter tools and 1 pc. saw blade with 180 mm diameter
  • Automatic clamp recognition and positioning feature
  • PLC controlled spray tool cooling unit
  • 4 pcs. of automatic clamps to catch the workpieces firmly.
  • 1 x pneumatic rest used for resetting the workpiece in X direction (second is optional)
  • Cartridge lubrication system for X, Y and Z axis
  • Special CAM program developed by Yilmaz engineering team
  • Operator safety barrier

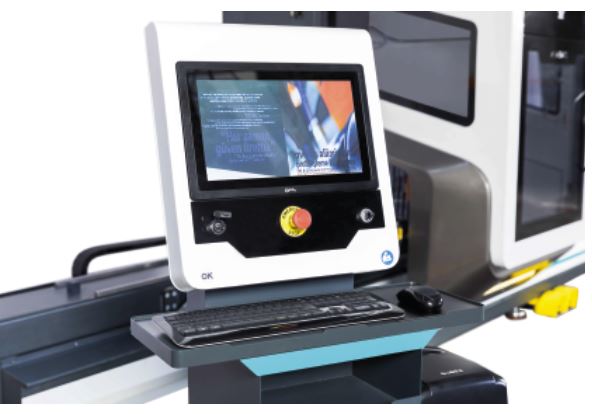

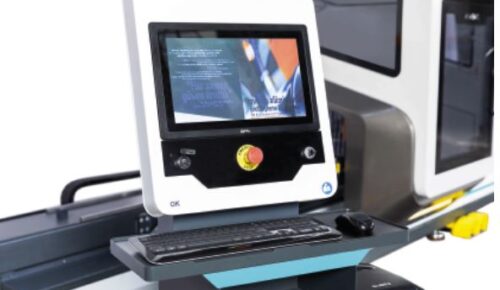

  • 15’’ colour touch screen
  • Program import via USB flash memory stick
  • Standard ISO ‘G’ code programming language
  • Technical support capability via remote connection by computer
  • Multi-language support
  • Special sound insulation cabinet around the machining center
  • Solid steel construction of the body and dynamic performance gantry
  • LED lighting in the cabinet
  • Hand held controller allows you to prove the job before running at speed (optional)

TECHNICAL SPECIFICATIONS TABLE

11,5 kW / 25A 25 A 400V AC 3P+PE / 50/60 Hz.
3.000 RPM
24.000 RPM
D: Ø180 mm
d: Ø30 mm
250 L/min.
6-8 bar
241x516x285
1.430 Kg / 1.850 Kg
