PRODUCT INFO

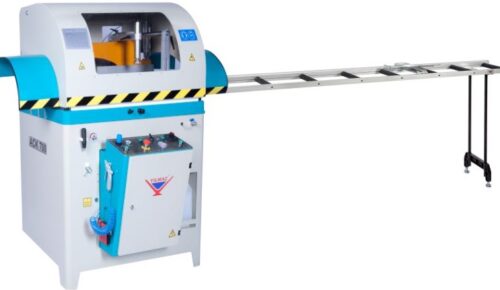

ACK 700 is designed for the strait or angular cutting operations of the large size of profiles made of PVC and aluminium materials by means of Ø 700 mm of saw blade.


WATCH PRODUCT VIDEO

CATALOGUE

STANDART ACCESORIES

  • Equipped with saw blade Ø 700 mm and 4 Kw motor
  • Spray saw blade lubrication system
  • MKN 301 roller conveyor (3 m)
  • 2 x vertical and 2 x horizontal clamps
  • Air gun
  • 2 x infeed & outfeed tunnels for operator safety
  • SKN 600 length stop

OPTIONAL ACCESSORIES

  • Additional saw blade, Ø 700 mm
  • Additional saw blade, Ø 700 mm
  • DKN 302 length stop
  • DKN 602 length stop
  • SKN 300 length stop
  • SKN 600 length stop

GENERAL FEATURES

  • Two-hand run safety operation
  • Location points at 75°,60°,45°,30°,22.5°,15°,0° both left and right
  • Pivoting range from -75° left to +75° right infinitely adjustable
  • Hydro-pneumatic saw feed
  • Adjustable saw blade feeding speed
  • Interior LED lighting
  • Pneumatically opening safety guard
  • Safety locking switches on top guard and front doors
  • Double acting clamps for operator safety

PRODUCT VIDEO

TECHNICAL SPECIFICATIONS TABLE

4.0 kW 400V AC 3P+PE / 50/60 Hz.
1.950 RPM
1950 RPM
Ø700/Ø38 mm
180 L/min.
6-8 bar
152x459x160
500 Kg / 560 Kg

OPTIONAL ACCESSORIES

  1. The clamp must be close
  2. Machine cover must be close?
  3. Check the cover switch.
  4. Check the air presure. It must be 6 Bar
  5. Check the cutting speed
  6. Check the hydro pnomatic sylinder oil.
